Wall Box Ev - Electric car charging stations for home and business use

EV Charging Type2 Cable 22kw Three-Phase Electric Vehicle Charging Cable 16A 32A 11KW

EV Charging Type2 Cable 22kw Three-Phase Electric Vehicle Charging Cable 16A 32A 11KW

Regular price £93.00
Regular price £54.00 Sale price £93.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Type

SPECIFICATIONS

Brand Name: K.H.O.N.S

Origin: Mainland China

Plug Type: TYPE 2

Material Type: copper alloy, silver plating

Conversion Type: Type 2 to Type 1

Item Weight: 3kg

Cable length: 5m

voltage: 110V-480V

Current: 16A/32A

Power: 7KW / 11KW / 22KW

Numbers of Phase: Single Phase / Three Phase

IP Rating: IP65

Conversion method: Type2 to Type2

Withstand voltage: 2000V

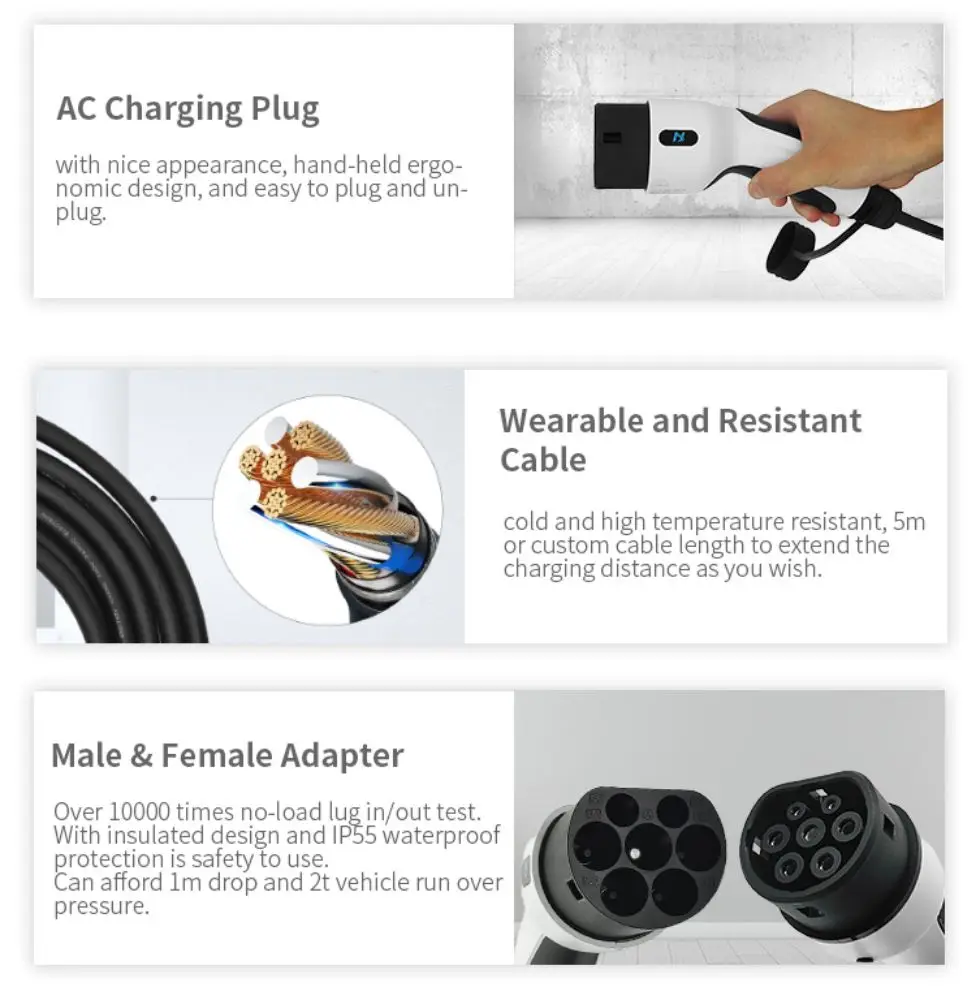

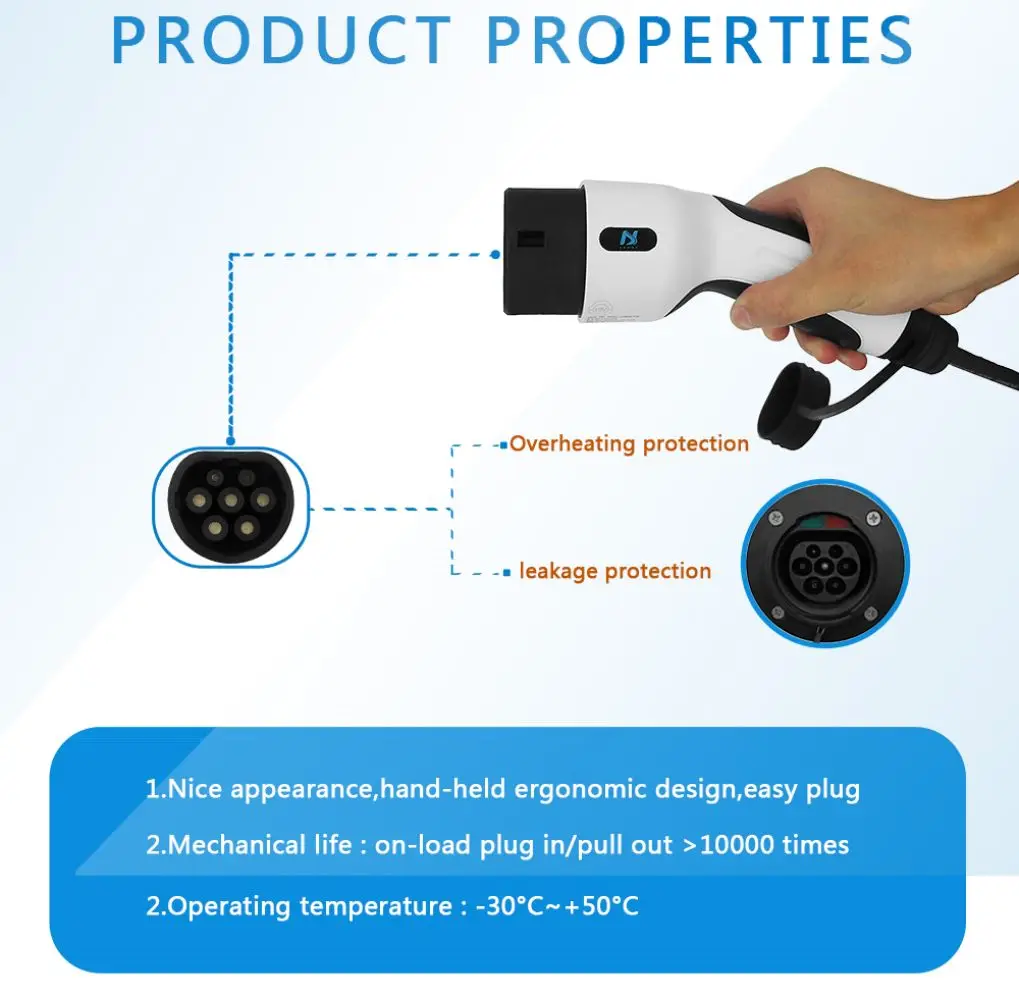

Mechanical life: plug in/out > 10000 times

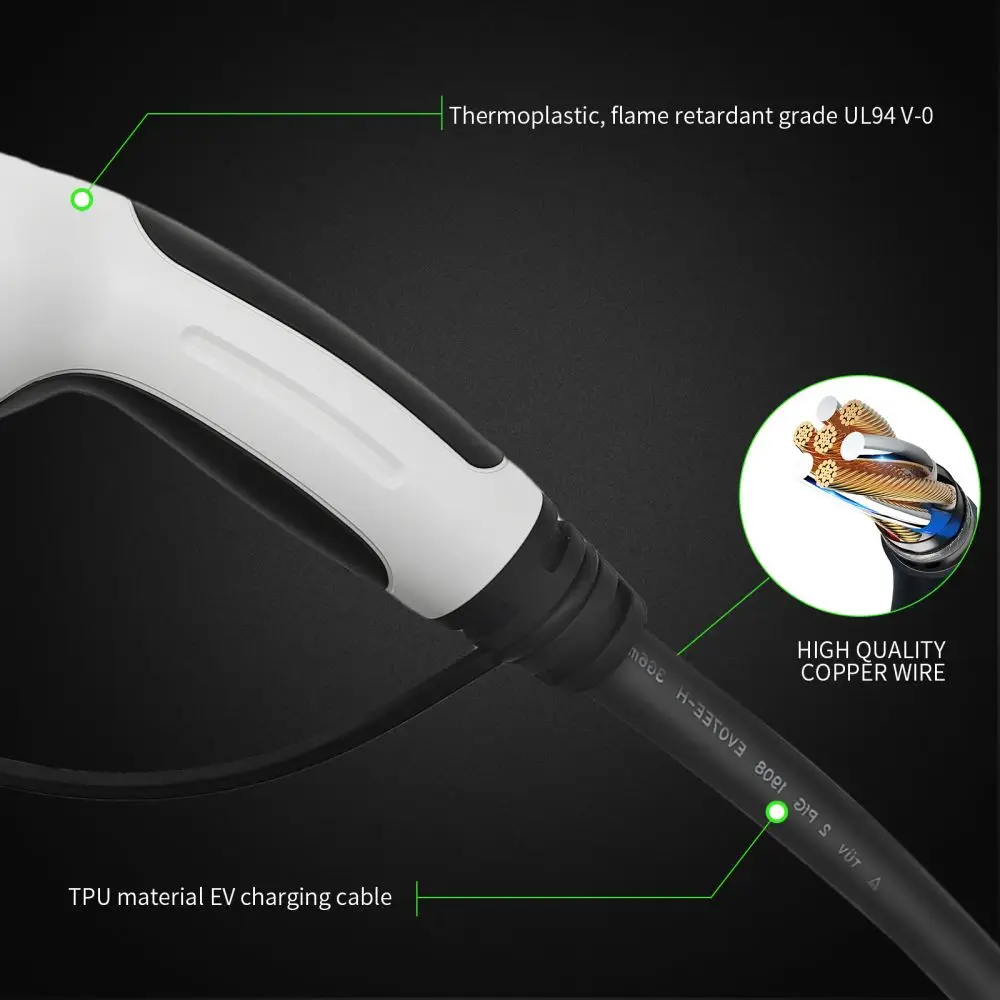

Housing Fire Rating: UL94V-0

Operating Temperature: -30°C~+50°C






Attention: If you need cables of other lengths or colors, please contact customer service!!!

Type 2 to Type 2 Electric Vehicle Charging Cables:


[High compatibility]:The EV charging cable adopts the standard IEC 62196-2 charging protocol and the standard SAE J1772 charging protocol, and is compatible with all electric vehicles and plug-in hybrid vehicles. All our products have passed CE certification and TUV certification, with superior quality.


[High safety] :High quality - high-strength ABS material with better quality and longer service life; IP65 waterproof is safer during charging. The cable is made of high-quality pure copper, with good conductivity and faster transmission speed. Internal cables are clean, avoiding potential safety hazards caused by cable interference. Our charging cables have protective measures such as overcurrent protection, overvoltage protection, undervoltage protection, leakage protection, overheating protection, and IP65 waterproof, which can safely charge your car and avoid fire.


[Two year warranty]: We use high-quality internal and external materials to extend the service life of our products. The charger comes with a two-year warranty from the date of purchase. If you have any questions, please feel free to contact us. And we provide permanently free software services.
