Wall Box Ev - Electric car charging stations for home and business use

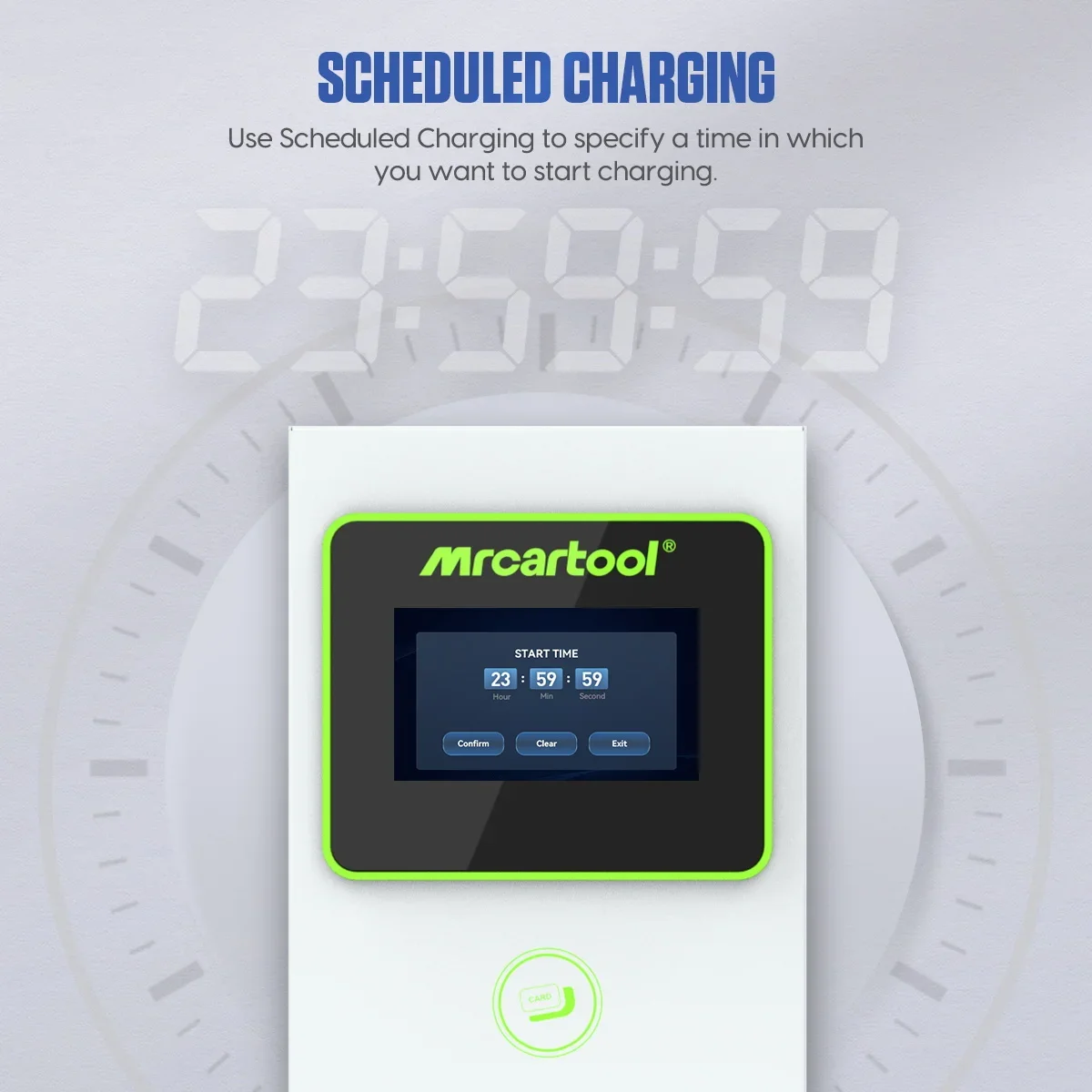

EV Charging Station Type 2 32A 7KW Scheduled Charge Wall Mount WallBox 8M Cable

EV Charging Station Type 2 32A 7KW Scheduled Charge Wall Mount WallBox 8M Cable

Regular price £298.00
Regular price £353.00 Sale price £298.00
Sale Sold out
Tax included. Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: MR CARTOOL

weight: 6.6Kg

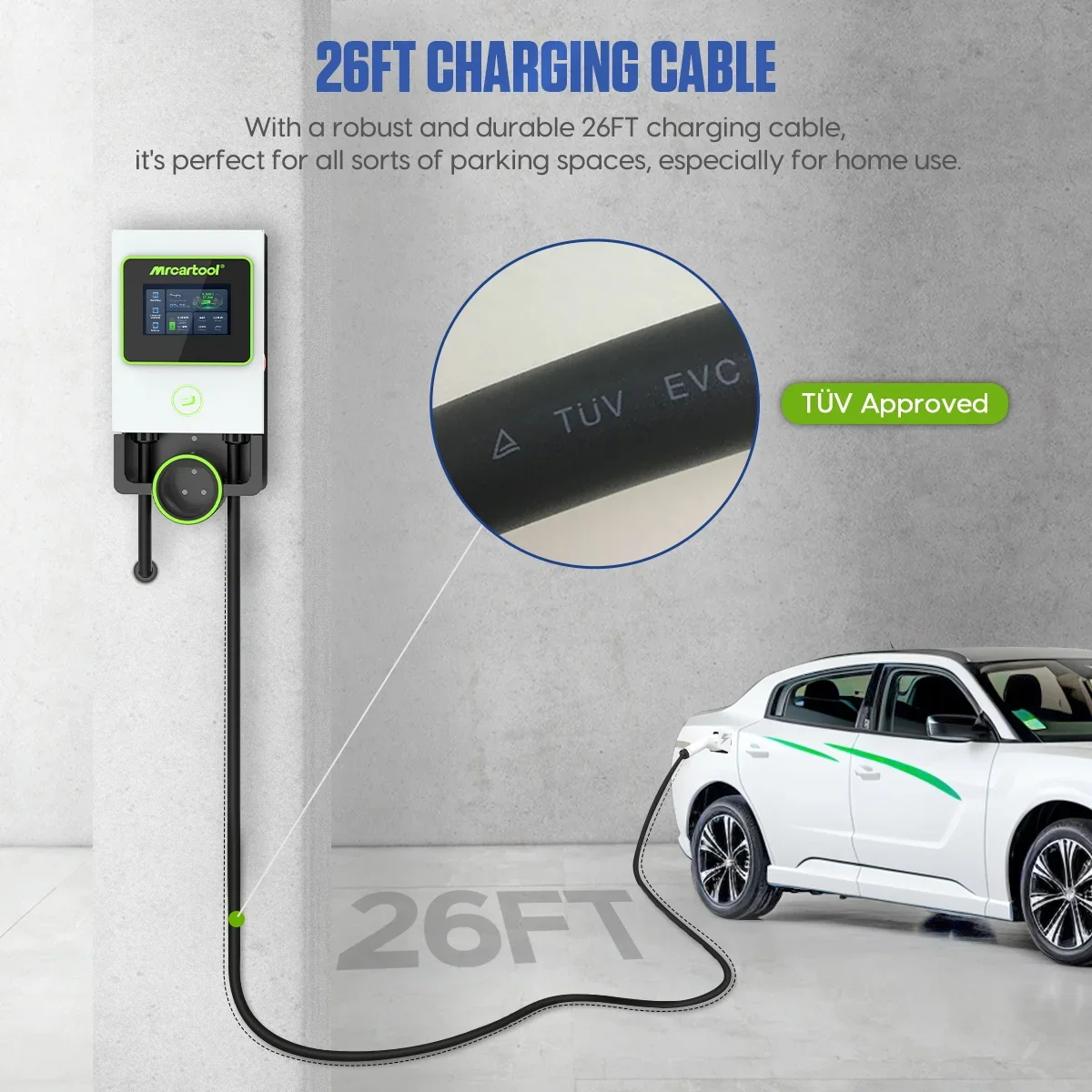

Cable Length: 26ft/ 8mCharging Cable

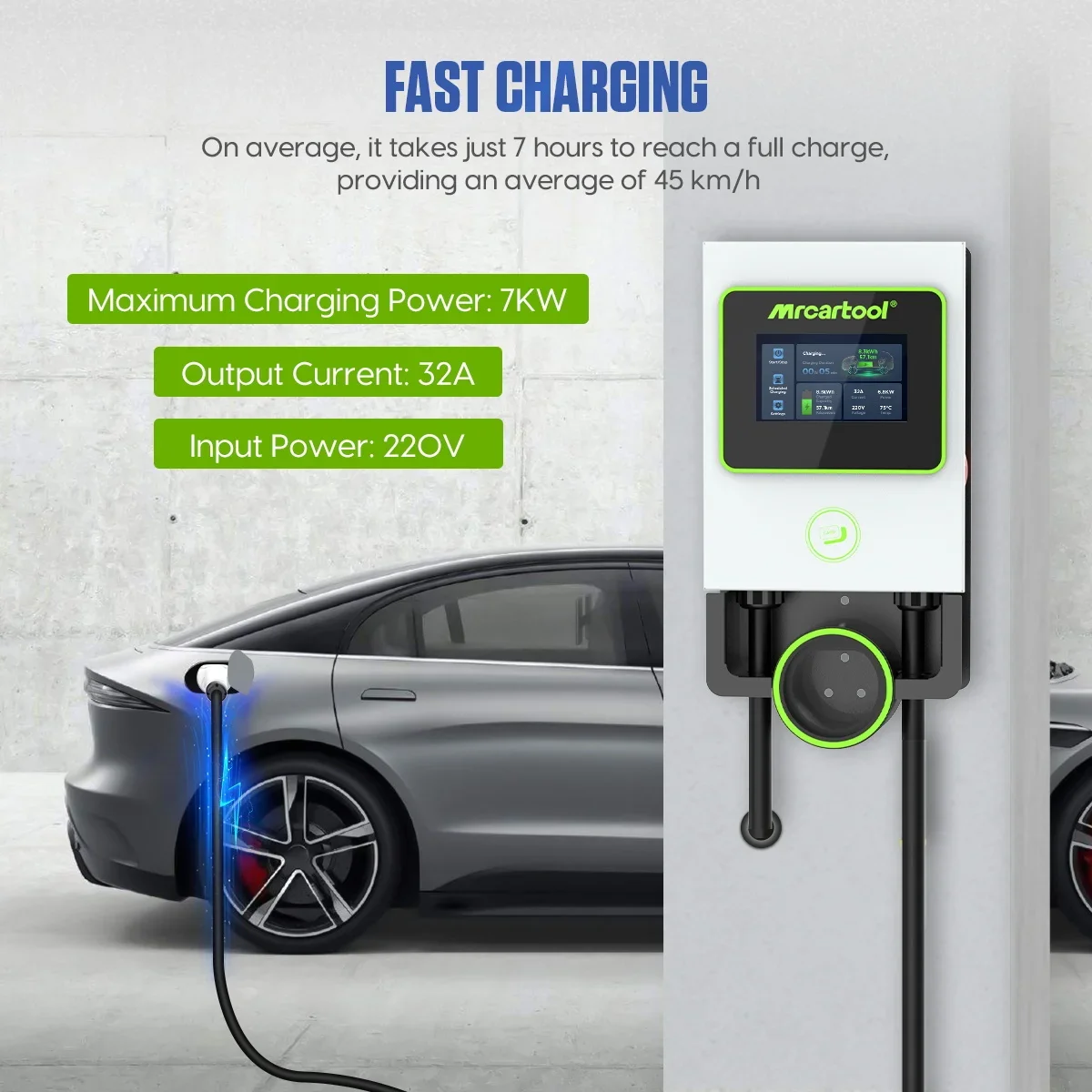

Power: 7KW

Voltage: AC220V

Current: 32A

IP Rating: IP65 (Control Box), IP55 (Gun Head - Coupling State)

Charger Type: Wall-mounted EV Charger Station

Item Name: AC Charging Pile For Home Use

Rated Power: 7kW

Output Current: 32A

Measurement Accuracy: Level 1

Input Frequency: 50HZ

Standby Power Consumption: Less than 2W

Wiring Method: Bottom entry/exit

Operating Altitude: Less than 2000m

Cooling Method: Natural cooling

Operating Humidity: 5%~95% non-condensing

Applicable Environment: Indoor/Outdoor


Product Introduction:

MRCARTOOL S311 is primarily composed of a charging station main unit, charging gun, cables, and installation backplate. It is an electric vehicle charging device that charges electric vehicles by connecting to the grid power supply.

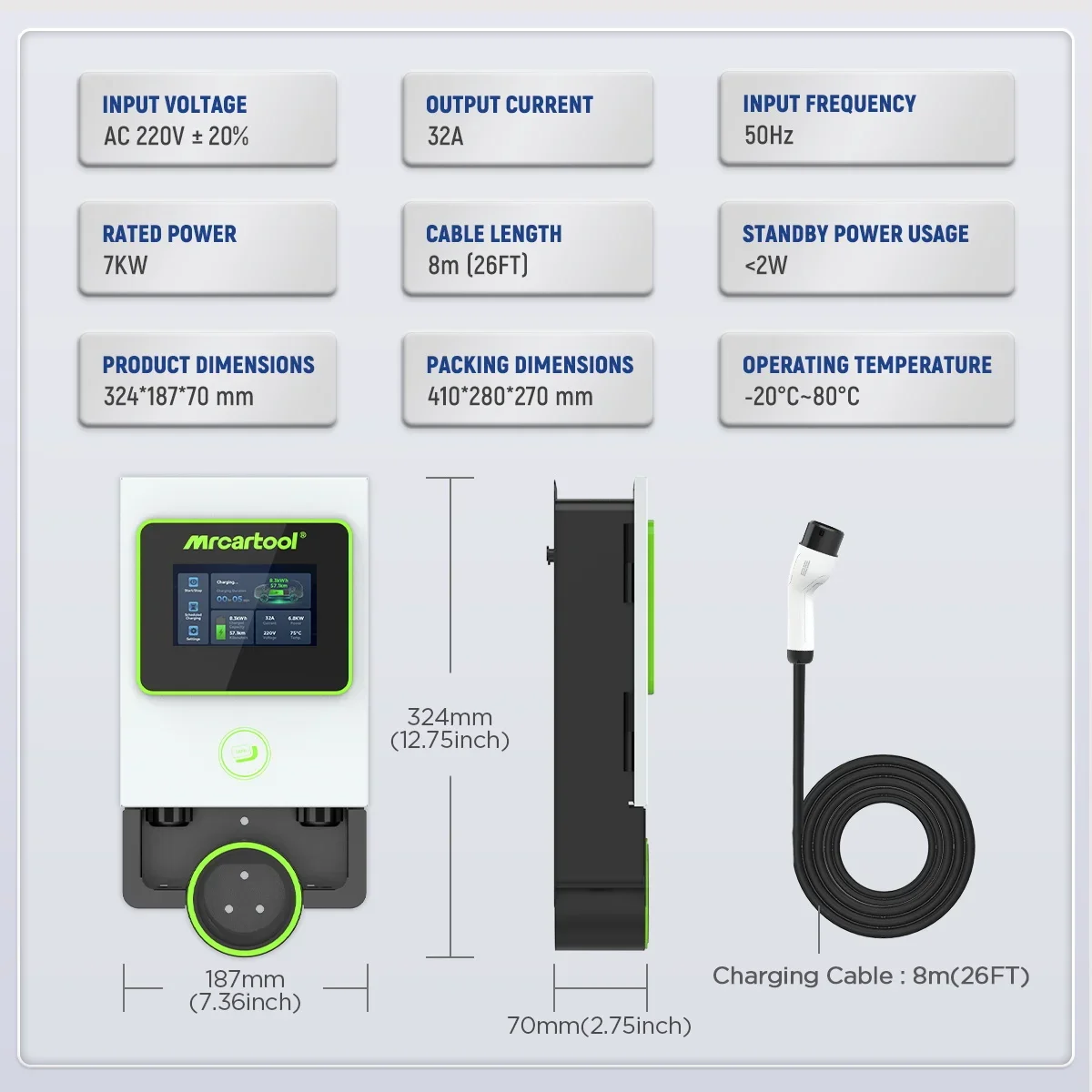

Technical Specifications:

Installation Method: Wall-mounted
Wiring Method: Bottom entry/exit
Cable Length: 8m
Input Voltage: AC220V 20%
Input Frequency:50HZ
Rated Power:7KW
Measurement Accuracy:Level 1
Output Current:32A
Standby Power Consumption:Less than 2W
Operating Temperature:-20℃~+80℃

Applicable Environment:Indoor/Outdoor
Operating Humidity:5%~95% non-condensing

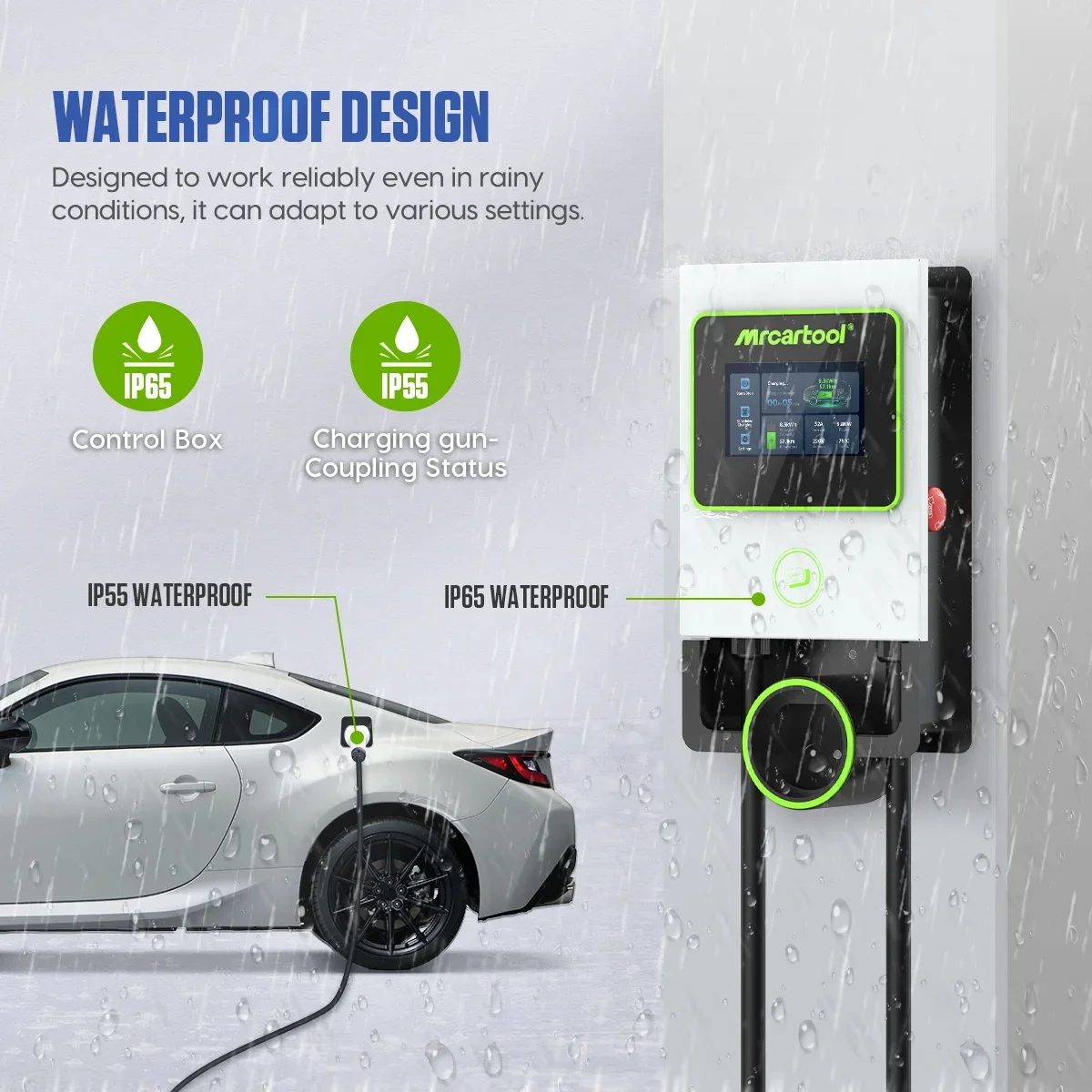

Protection Level:IP65 (Control Box), IP55 (Gun Head - Coupling State)
Operating Altitude:Less than 2000m

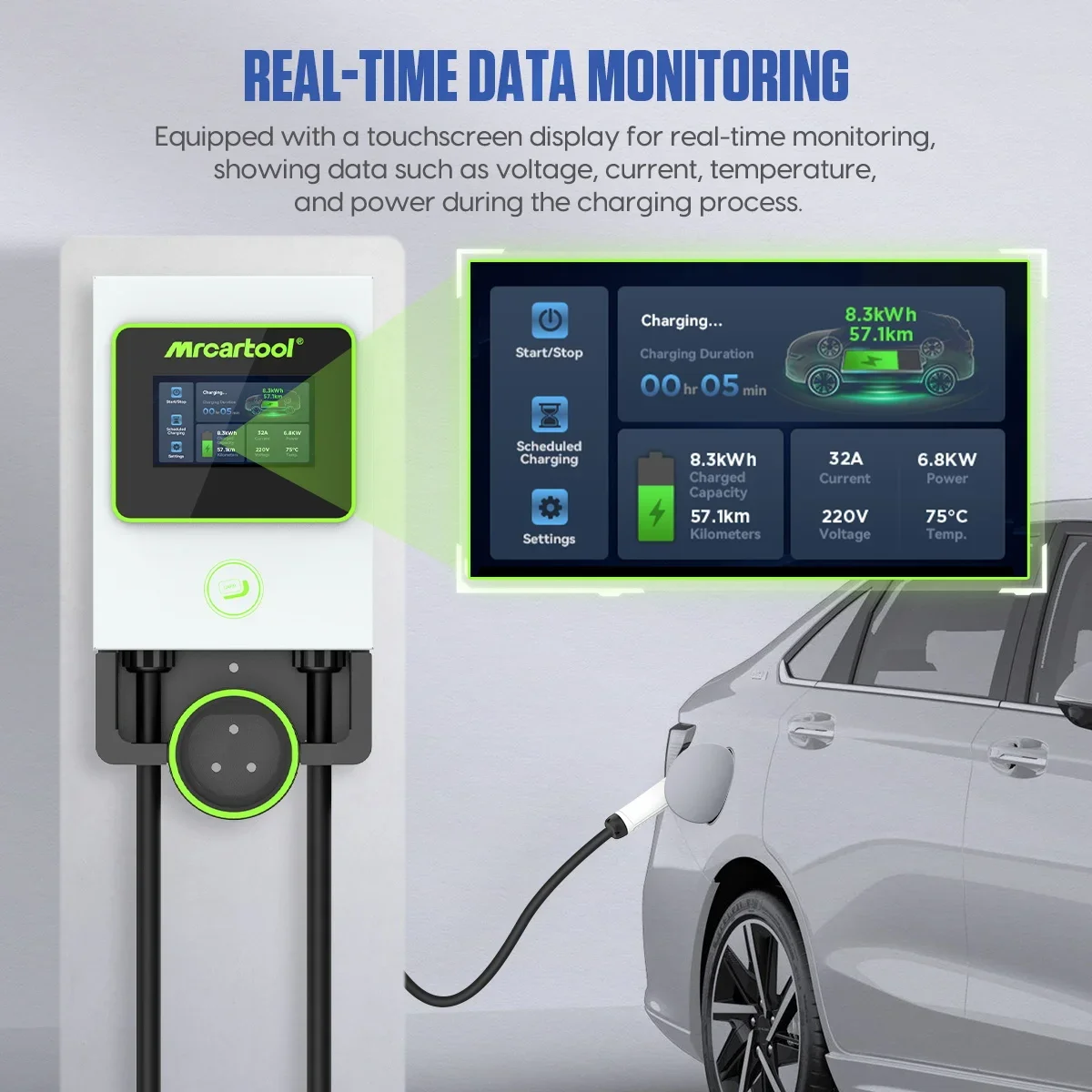

User Interface:Display screen with LED indicator

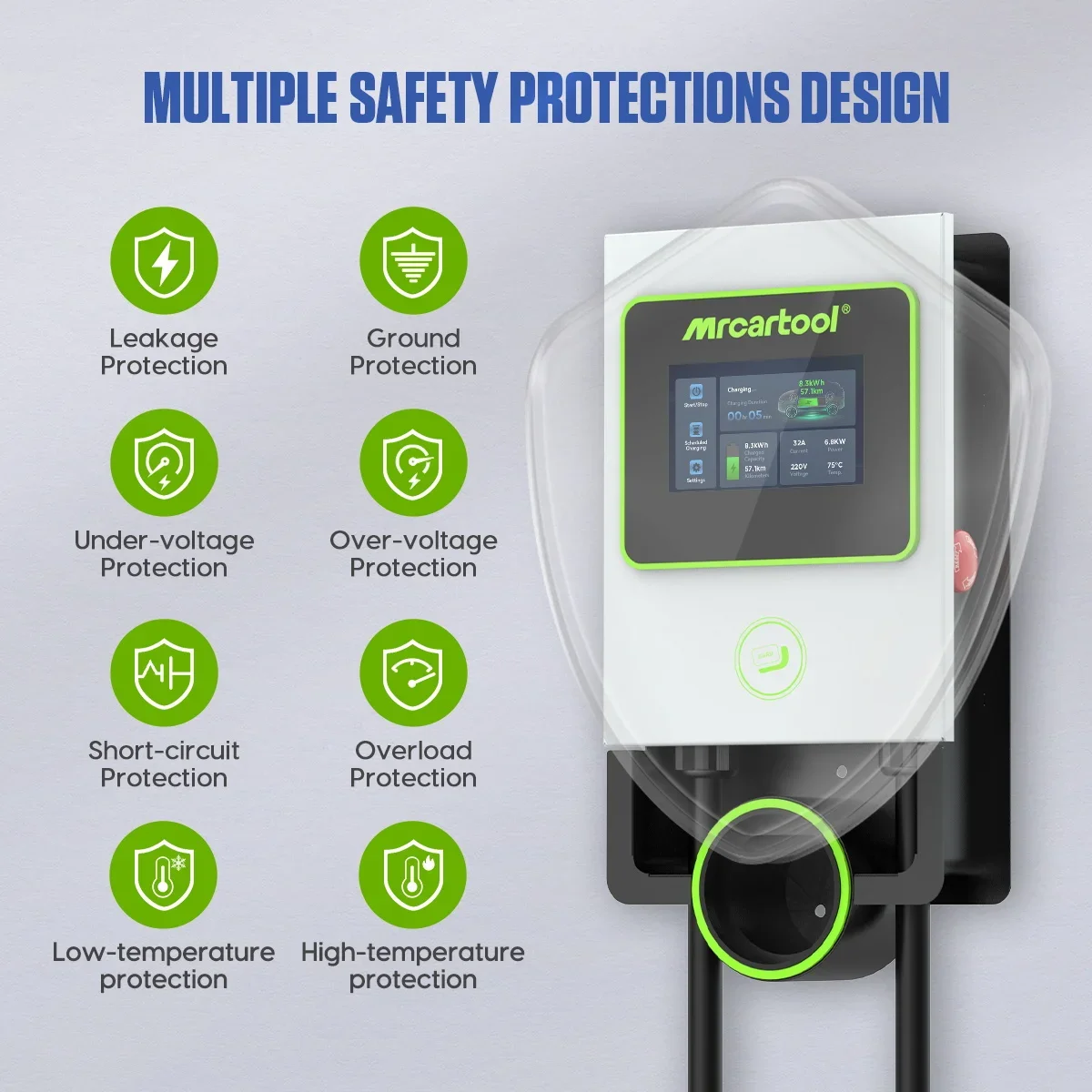

Protection Design:Overvoltage protection,
Undervoltage protection,
Short-circuit protection,
Overload protection,
Grounding protection,



Function Description:

Leakage Protection
When leakage protection is triggered,it will automatically restore power after 3 minutes.

Overcurrent Protection
If the current exceeds the warning value of 35A, the charging station will cut off power output. It will automatically restore power after 1 minute.

Overvoltage Protection
When the voltage exceeds 275V, overvoltage protection is activated. It will automatically restore power once the voltage returns to a stable level.

Undervoltage Protection
If the voltage drops below 88V, undervoltage protection is initiated. It will automatically restore power once the voltage returns to a stable level.

Temperature Protection
Temperature protection activates when the temperature exceeds 83°C. It will automatically restore power once the temperature drops to 80°C.

Grounding Protection
The system default is that charging is not allowed without proper grounding.

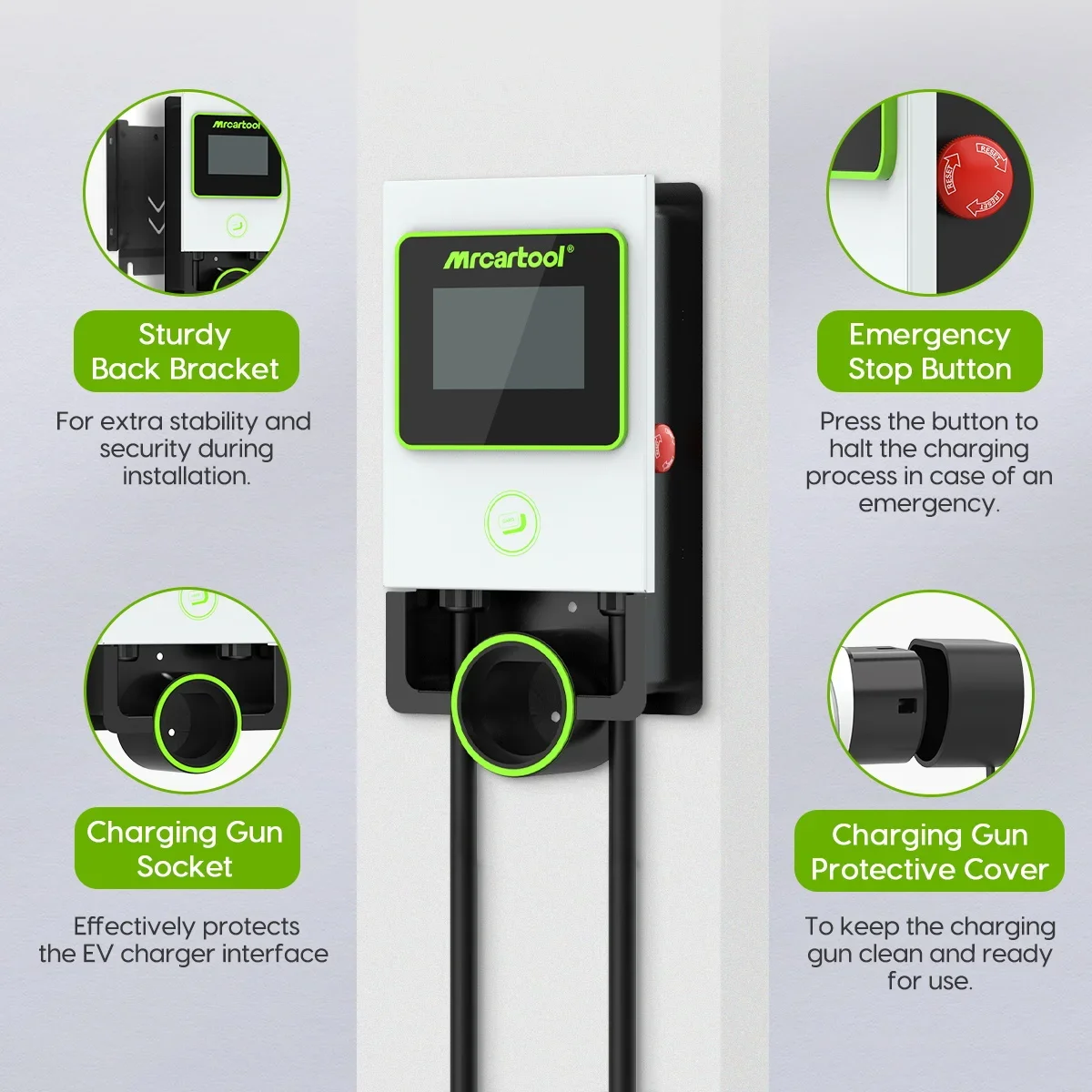

Emergency Stop Protection
Pressing the emergency stop switch will cut off power output from the charging station. Normal operation can be resumed by restoring the emergency stop switch.

6 Languages

As so far, S311 ontains English, Spanish, German, French, Italian, Chinese.



3 Access Options Of Charging

1. Card Swipe Access: Unlock by swiping a card to
start the device; effectively prevents unauthorized usage.
2. Password Entry: Enter a password at startup to unlock; the password can becustomized.
3. Plug-And-Charge: No need to unlock upon startup; just connect the charging gun to begin charging.

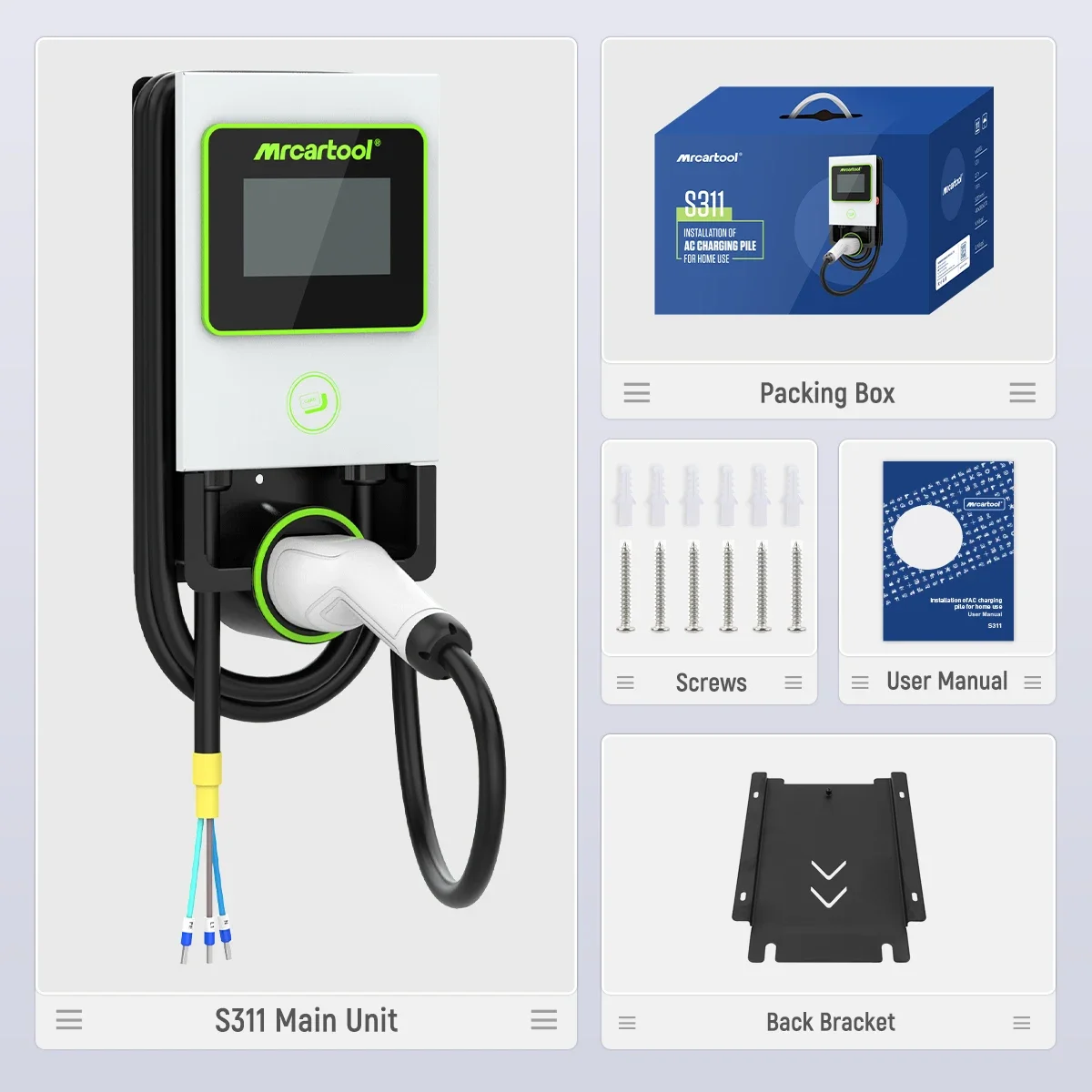

Packing List:
